CLOSED-TYPE TITANIUM MUZZLE BRAKE COMPENSATORS

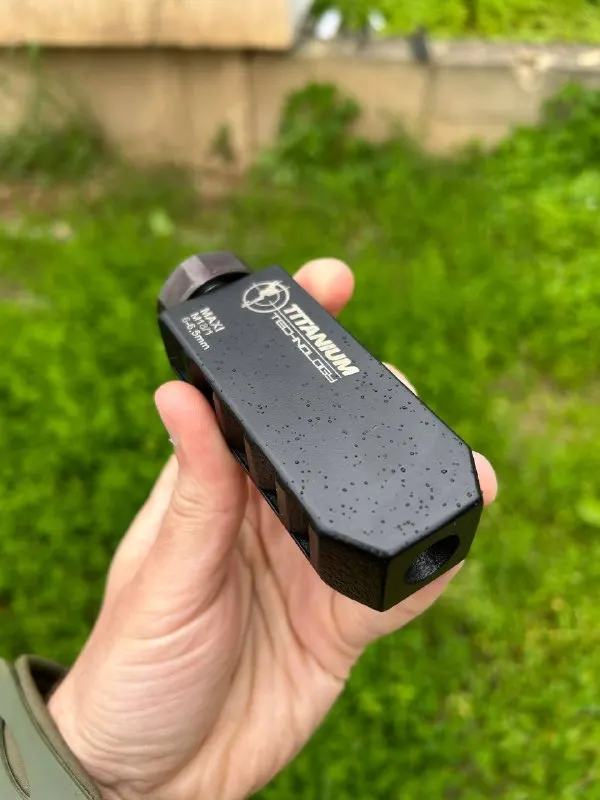

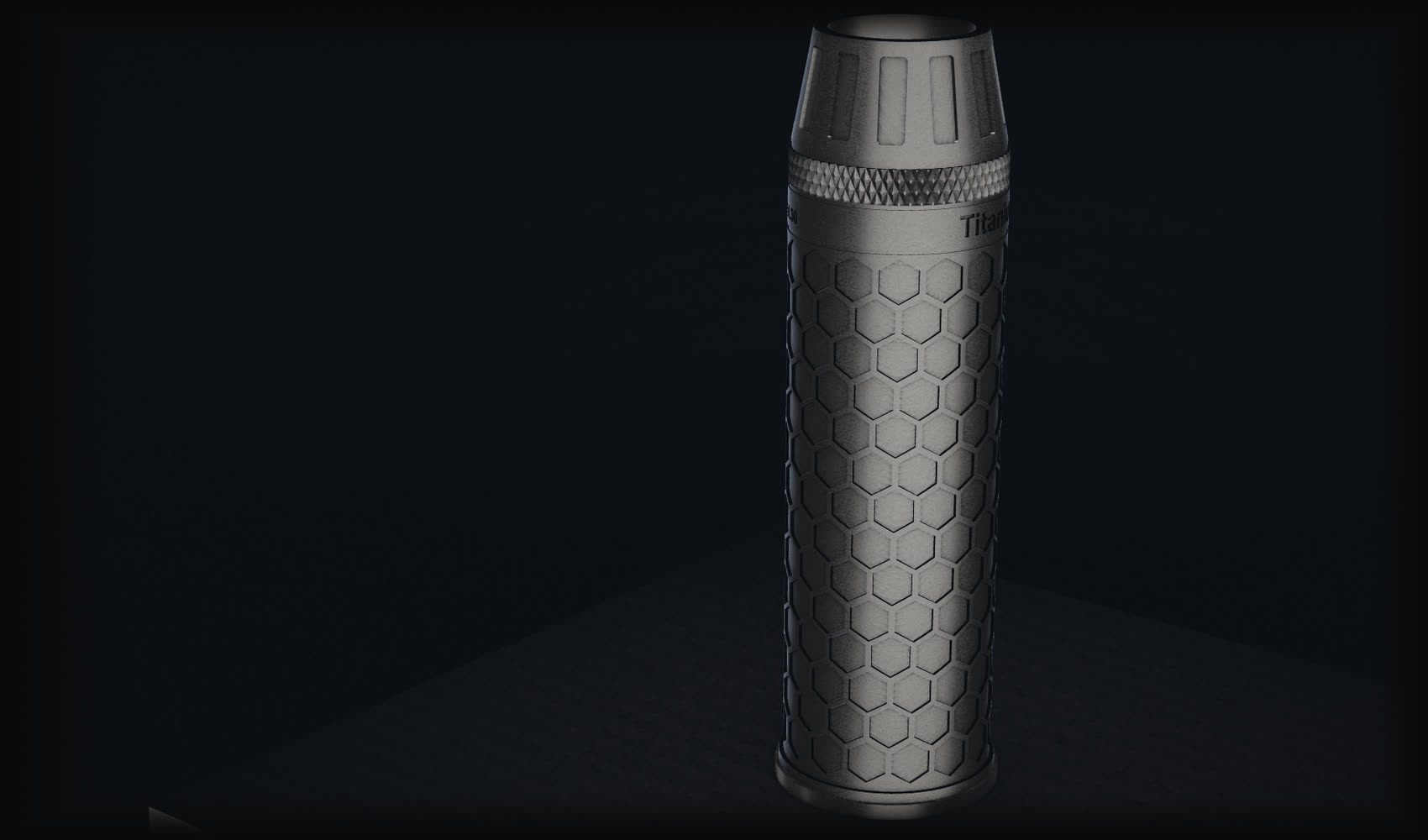

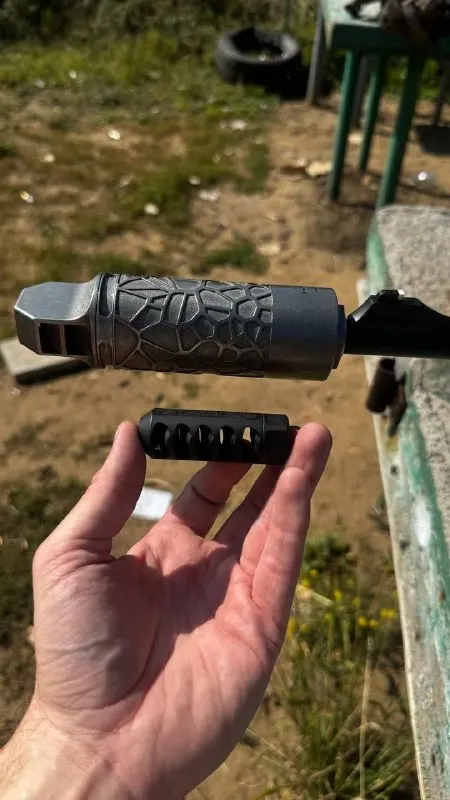

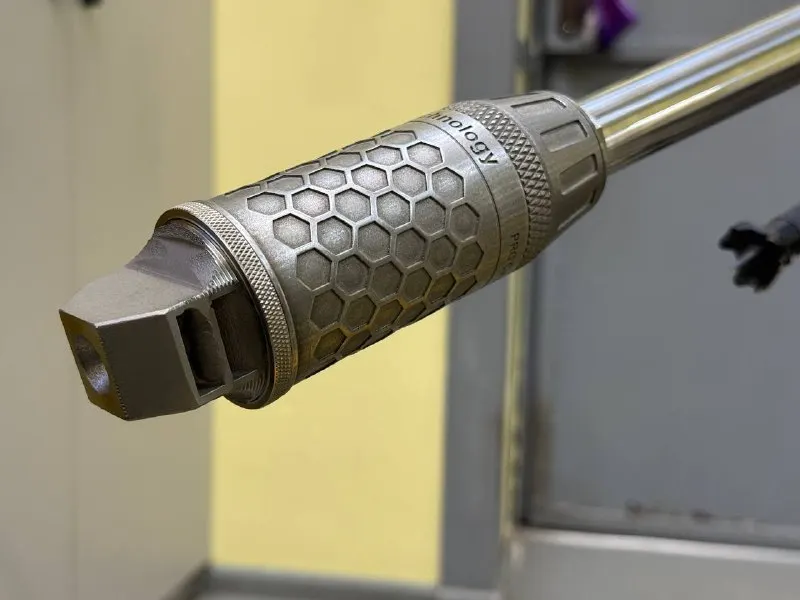

An open muzzle brake redirects propellant gases sideways and works on recoil only — it does not reduce sound and can make it louder for the shooter. A closed-type device routes gases through expansion chambers, where they slow down and cool, so both recoil and sound level drop. Our range covers both: the open TT MAXI and TT MAXI PLUS, and the closed 3D, INTEGRAL and SM 47 series.

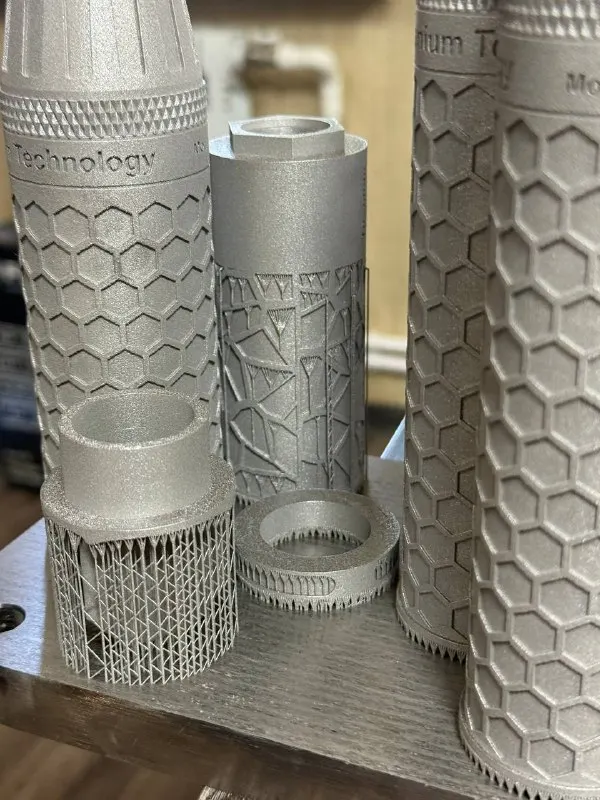

Ti-6Al-4V (Grade 5) is roughly half the weight of steel at comparable strength — decisive at the muzzle, where mass changes the balance of the rifle. Titanium does not rust and does not erode the way aluminium does, and it withstands propellant gas temperatures. Service life is over 10,000 rounds, with a 2-year warranty.

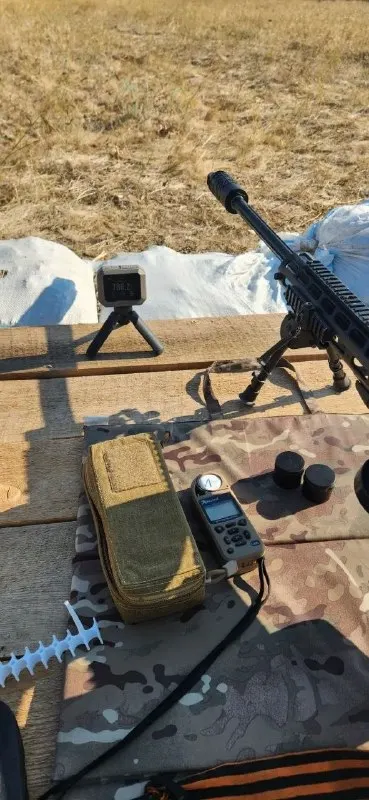

Between 28.9 and 35.0 dB depending on the model, by instrumented measurement (series 07.2026). Same method throughout: .308 Win, 20″ barrel, Ekofizika-110A sound level meter, peak level one metre to the left of the muzzle, average of five shots. We publish measured values only.

Velocity is set by the barrel and the cartridge; the device works on gases after the bullet has left, so the effect is negligible. The point of impact will shift after installation — a normal physical effect of any muzzle device, corrected by re-zeroing over 3–5 rounds. A device in working order does not degrade grouping.

The bore is machined for a specific bullet, so the exact caliber is required when ordering. A device made for a large caliber (.338, for example) can be used on smaller-caliber barrels with a slight loss of efficiency. The reverse is not possible.

Certificate of conformity 2022–2027, a patent for invention and nine expert conclusions: MA-1, MA-2, MA-2 250 mm, MA-3, MA-4, plus Integral Plus (TT 02), 3D Standard (TT 10), 3D Mini (TT 20) and Mini Magnum (TT 40). All of them are published in the Documents section and open without a request.

The selection calculator is the quickest route: enter caliber and thread, and it lists compatible models. Threads run from M13×1 to M24×1, plus imperial 5/8-24 and 3/4-24. For a non-standard thread, send measurements (diameter, pitch, length) or the original thread cap from the barrel and we will cut the mount to match.

From 35,000 to 65,000 ₽ depending on model and caliber. Every unit is made to order for your caliber and thread, in 2–3 weeks. Two-year warranty, cash on delivery available.
